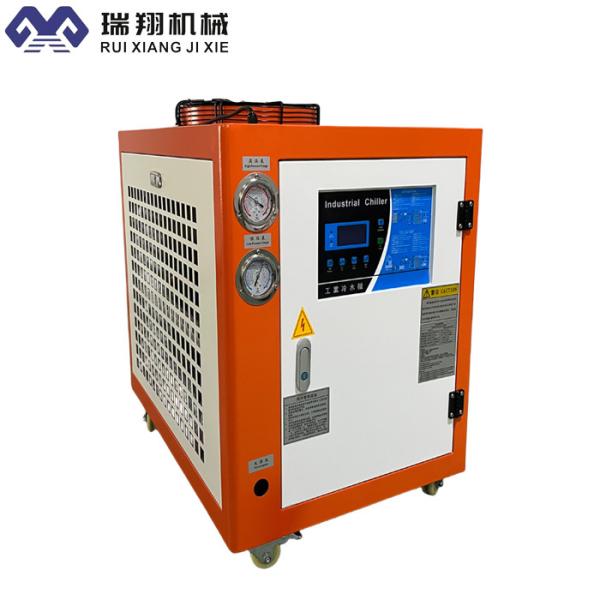

    Portable Laser Engraver Chiller 25hp Indoor Laser Water Cooler

    Ask Lasest Price
    Brand Name : Ruixiang
    Model Number : RX-25HP
    Certification : ISO9001/CE
    Price : RMB 6500-800000/PC
    Payment Terms : T/T
    Supply Ability : 500days
    Delivery Time : 15-20 Units
    • Product Details
    • Company Profile

    Portable Laser Engraver Chiller 25hp Indoor Laser Water Cooler

    Portable Laser Chiller Unit 25hp Indoor Laser Chiller Laser Engraving Chiller
    Product Description

    Laser Chiller Air Cooled Chiller Portable Laser Chiller Indoor Laser Chiller Laser Engraving Chiller Laser Cutting


    What is a laser chiller?

    Laser chiller is a kind of individual application of industrial chillers to the laser industry. The laser chiller is mainly used for water circulation cooling of the laser generator of laser equipment, and controls the temperature of the laser generator, so that the laser generator can keep working normally for a long time.

    There're air cooled type and water cooled type chiller. They are exactly the same in terms of refrigeration mode and function, but the difference is the cooling mode of condenser. The water cooled chiller is shell and tube condenser, which uses water as the cooling medium. The air-cooled chiller uses finned condenser and takes the surrounding air as the cooling medium. Because the air-cooled chiller is cooled directly by air, the system does not need the relevant cooling water and circulating water equipment to save water. The air-cooled chiller is very suitable for use in

    in areas with less water.


    Laser Chiller Specification

    ItemAL-25W(D)
    Nominal cooling capacityKcal/h62952
    kw73.2
    Input powerkw23.16
    Power supply3PH~380V/50HZ
    RefrigerantTypeR22
    Type of controlExpansion valve
    CompressorTypeHermetic scroll type
    Power (kw)18.6
    CondenserType

    Finned copper tube+low noise outer

    rotor fan

    Power(kw)1.56
    Cooling air flow25000
    EvaporatorTypeWater tank with coil
    Chilled water flow12.62
    Tank volume(L)350
    Inlet/outlet pipe chiller(inch)2-1/2
    Water pumpPower(KW)3
    Lift(m)28
    Safety protectioncompressor over temperature, over-current protection, high and low pressure protection, over -temperature protection ,flow switch protection,phase sequence or missing phase protection,exhaust overheating protection
    Net weightkg920
    Dimensionmm2000*1130*1965

    Featurers for air cooled laser chiller

    1. Cooling capacity from 2kw to 2500kw, fully meets the demand of industrial production.
    2. Built with world class brands component ,such as Panasonic,Copeland and Danfoss compressors, Schneider electric accessories.
    3. Build with high efficiency shell and tube evaporator and fin condenser, plate pack evaporator also available.
    4. Air coole package laser chiller has contains water tank and the pump and all necessary components, portable and easier installation.
    5. Laser chiller has accurate temperature control with water temperature accurate ± 0.1 ℃

    Benefits of an laser water chiller

    1. The laser chiller cooling provide constant and precise cold water to the laser process temperature.
    2. The water chiller precise temperature control can improve the machining accuracy of laser machine and productivity for laser process.
    3. Air cooled laser chiller design is very compact and made of high-grade materials. It has stronger durability and longer service life.
    4. Chillers can decrease equipment depreciation and degradation to cut down on operating expenditures.
    Water quality and material requirements for laser chiller water systems​
    The waterway inside the laser is narrow, if there are impurities in the circulating water, it is easy to block the waterway, so the laser has a high requirement on the water quality of the circulating water of the chiller. The water system of laser chiller must be made of stainless steel to prevent rust and other impurities. At the same time, it is recommended to use distilled water or clean purified water as the circulating water of cooling time.
