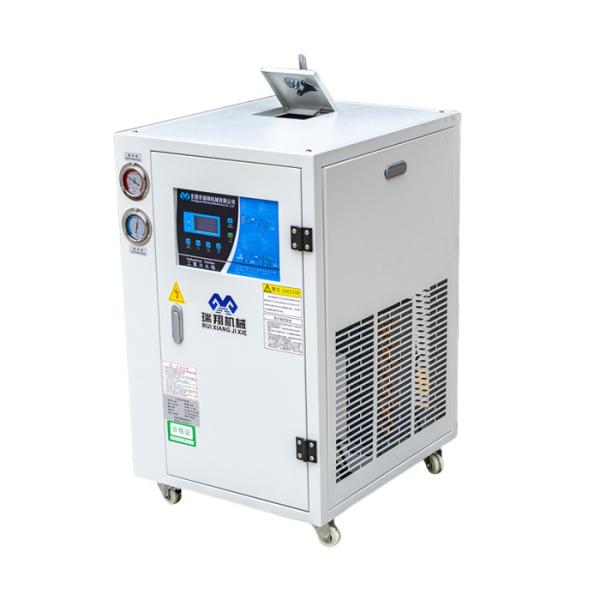

    Industrial 10hp Laser Chiller Unit Laser Engraver Water Chiller For Steel Laser Cutting Machine

    Ask Lasest Price
    Brand Name : Ruixiang
    Model Number : RX-10HP
    Certification : ISO9001/CE
    Price : RMB 6500-800000/PC
    Payment Terms : T/T
    Supply Ability : 500days
    Delivery Time : 15-20 Units
    • Product Details
    • Company Profile

    Industrial 10hp Laser Chiller Unit Laser Engraver Water Chiller For Steel Laser Cutting Machine

    10HP Industrial Air Laser Chiller Unit For Steel Laser Cutting Machine

    Product Description

    Laser cutting machine is a kind of high-tech equipment widely used in industrial production and processing. Compared with traditional machining, laser cutting machine has the advantages of high precision, fast efficiency and low loss. However, to ensure the normal operation of the laser cutting machine, the water cooling system must be used correctly.


    Laser Chiller Specification

    Model

    Item

    AL 10 (w)
    Nominal cooling capacityKcal/h24940
    kw29
    Input powerkw11.22
    Power supply3PH~380V/50HZ
    RefrigerantTypeR22
    Type of controlCapillary
    CompressorTypeHermetic scroll type
    Power (kw)8.8
    CondenserType

    Finned copper tube+low noise outer

    rotor fan

    Power(kw)0.92
    Cooling air flow10000
    EvaporatorTypeWater tank with coil
    Chilled water flow5
    Tank volume(L)200
    Inlet/outlet pipe chiller(inch)1-1/2
    Water pumpPower(KW)1.5
    Lift(m)25
    Safety protectioncompressor over temperature, over-current protection, high and low pressure protection, over -temperature protection ,flow switch protection,phase sequence or missing phase protection,exhaust overheating protection
    Net weightkg450
    Dimensionmm1530*780*1630

    The cooling principle of laser chiller

    The water cooling system absorbs and transmits laser heat continuously through the water cycle to achieve the purpose of cooling. Its core part is the water circulation pump, which sends the cooling water pump to the laser and the cooler to complete the cooling cycle. The correct configuration and regulation of cooling water temperature and water volume can effectively protect the laser and extend its service life.

    The difference between laser chiller and ordinary chiller


    1. Compared with ordinary chiller, the volume is more compact, the temperature control accuracy is higher, can reach ±0.1 ° C,
    2. and improves the traditional liquid storage, does not need to be stored in the water tank,
    3. and can be placed inside the laser equipment for use.

    Featurers for air cooled laser chiller


    1. 304 stainless steel evaporator, to prevent pure water in the transport process to produce solid and other metal impurities.
    2. the product specifications are diverse, the variety is complete, suitable for different power of the laser machine supporting use.
    3. precision digital temperature controller, can accurately control the water temperature of ±1 ° C (±0.1 ° C) push-button operation, without professional personnel can be used normally.
    4. easy installation, no matter whether the height of the chiller and the host match, can be used normally.
    5. Electrostatic spray shell, European design, beautiful and generous, the outer board adopts the form of quick disassembly, easy to use and maintain.
    6. Laser chiller is used for laser cutting, laser welding, laser engraving, etc. The composition of laser chiller is composed of compressor, condenser, throttling device, evaporator, water tank and water pump and other accessories.
